Operating Microscope

Operating Microscope: The operation microscope is mainly used for animal anatomy in teaching and experiment, the suture of tiny blood vessels and nerves, and other fine operations or examinations that need the help of microscope.

Send Inquiry

Product Description

1. Product Introduction of Operating Microscope

Operating Microscope: Surgical microscope video recording and broadcasting system is also called: camera system, high definition image display system, digital surgical image management system, etc. It is a special function for medical institutions to save the video recording of the operation process, so as to facilitate the review and filing of previous cases.

2. Product Parameter (Specification) of Operating Microscope

A41.1902 Series Of Operation Microscope Specification

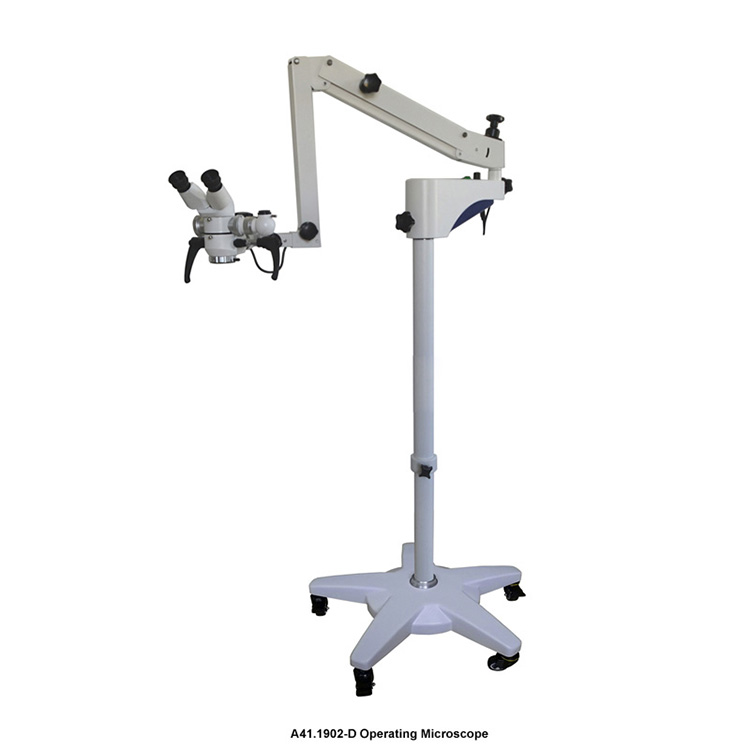

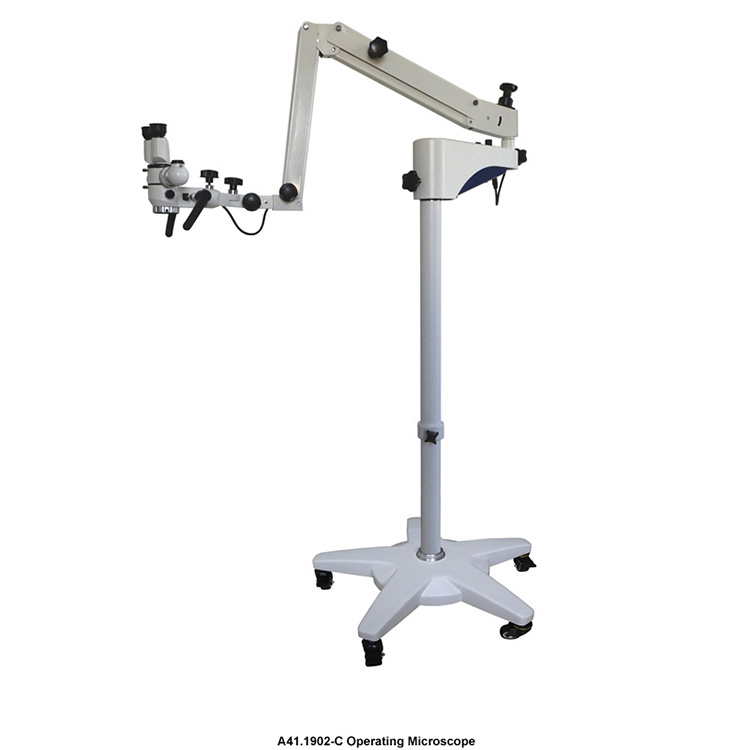

Item A41.1902-C A41.1902-D
Straight 45º Tilted
Magnification of binocular 6X
Interpupillary distance 50mm-80mm
Diopter ±5D
Magnification changer 3-step magnification change: 0.6X,1X,1.6X
Focal length of objective Two objectives: F=200 & F=300mm (M45x0.75mm)
Total magnification 3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear field 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Beamsplitter 50:50 Beamsplitter
Video camera adapter C-mount 1/3 inch video camera attachable
Fine focusing range 10mm
Filter Built-in green and yellow filters
Balancing arm 2-part arm with universal joints, counterweight adjustable and can be locked
Illumination system Coaxial illumination with 10W LED lamp light source, brightness adjustable,
illumination>30000lx

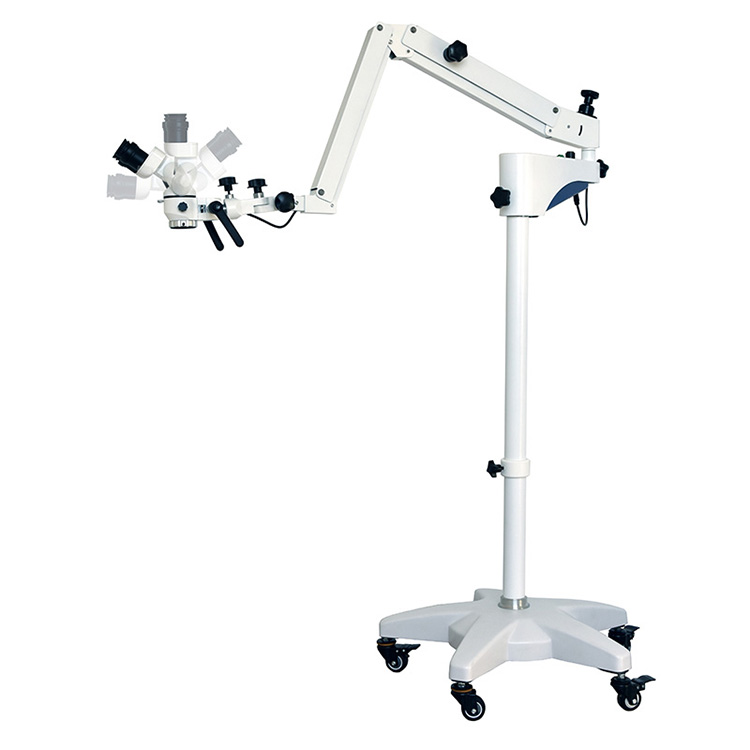

Stand 2-part column fitted on the five-star base with casters
Power Supply AC100V-AC240V
Optical Characteristics for A41.1902 Series Operation Microscope:
Focal length of objective F=200mm F=250mm(optional) F=300mm F=400mm(optional)
Magnification on handwheel 1.6X 1X 0.6X 1.6X 1X 0.6X 1.6X 1X 0.6X 1.6X 1X 0.6X
Total magnification 12X 7.5X 4.7X 9.6X 6X 3.7X 8X 5X 3X 6X 3.8X 2.3X
Linear field (mm) 15.8 25.3 40.6 19.7 31.6 50.7 23.6 37.9 60.8 31.5 50.5 81
Exit pupil diameter (mm) 1.04 1.66 1.04 1.66 1.04 1.66 1.04 1.66
Exit pupil distance (mm) 15.3
Resolution (LP/mm) 67 44.5 29.7 60 35.4 27 47.2 31.5 23.6 35 27 19.8
A41.1902 Series Of Operation Microscope Optional Accessories
Objective Lens Objective F=250mm A52.1901-25
Objective Lens Objective F=400mm A52.1901-4
Demonstrator 6x A53.1901-1
Camera Adapter C-Mount,For 1/3 ''Digital Camera A55.1903 -YSX
SLR Camera Adapter For or Canon SLR camera A55.1904-A

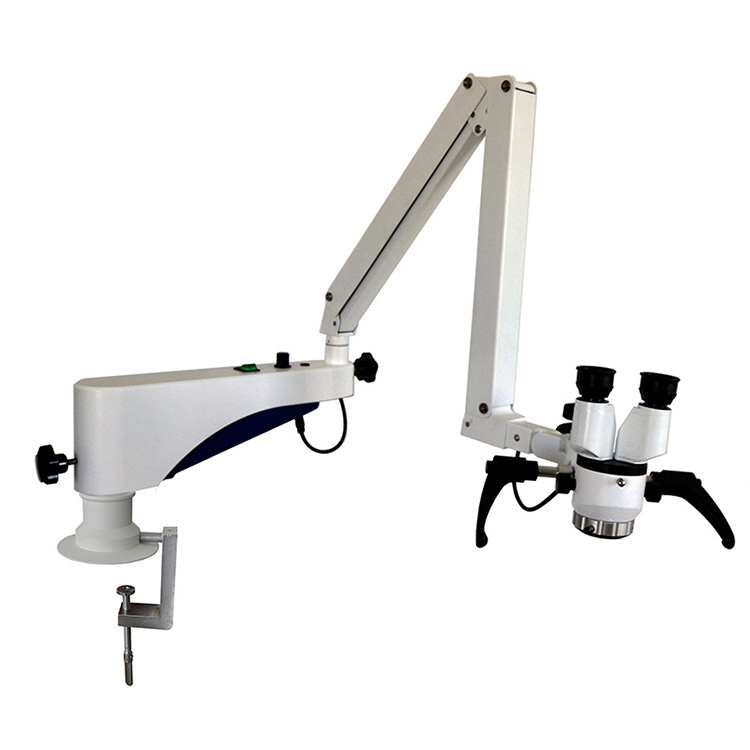

Table Mount Clamp A41.1901-A
Wall Mount Bracket A41.1901-C

3. Product Feature And Application of Operating Microscope

Operating Microscope:

1. Image display:

A. Broadcast-grade image quality, ensure high-definition and real-time dynamic image display (high-definition image display lays the foundation for high-definition image broadcast in the future), and support dual-screen function.

2. Image single frame acquisition

A. video signal and input: can process PAL or NTSC standard video signal, also can process non-standard video signal (optional); It can process composite video signal, S terminal signal, and RGB video signal (optional).

3. Dynamic recording of images

A. Seven-level digital filtering technology is set in the digital video recording software for surgery, which can minimize clutter and greatly improve the video quality. Mpeg-2 represents the highest level of real-time compression technology, designed for the pursuit of high quality users to provide DVD, SVCD, VCD production three-in-one solution.

B. with no time limit (only related to the size of the hard disk) dynamic image recording, storage function, can record the entire inspection process or select a more meaningful section of the record, can also be segmtioned recording. With the recording pause function (optional)

C. The exported dynamic images can be burned to CD. The contents of this CD can also be played back on any computer.
